Rof Electro-optic Modulator 1550nm AM Series Siv Lub Sijhawm Modulator 40G
Feature
* Tsawg qhov ntxig poob
* Siab Bandwidth
* Tsawg ib nrab-yoj voltage
* Customization xaiv
Daim ntawv thov
⚫ ROF systems
⚫ Quantum key faib
⚫ Laser sensing systems
⚫ Sab-band modulation
| Rof- AM Series | Rof-AM-07 | Rof-AM-08 | Rof-AM-10 | Rof-AM-13 | Rof-AM-15 | |||
| Ua haujlwm wavelength | 780nm ua | 850nm ua | 1064nm ua | 1310nm ua | 1 550nm | |||
| Bandwidth | 10 GHz | 10 GHz | 10/20GHz | 2.5 GHz | 50GHz | 10 GHz | 20 GHz | 40 GHz |
| Insertion Loss | 5 dB | 5 dB | ＜5dB ib | ＜5dB ib | ＜4dB ib | |||
| Extinction ratio @DC | ＞20dB ib | ＞20dB ib | ＞20dB ib | ＞20dB ib | ＞20dB ib | |||
| VΠ @RF (1KHz) | 3V | 3V | 4 V | <3.5V | ＜6V | <5 V | ||
| VΠ @Bias | ＜3.5V | ＜3.5V | 5V | <5 V | <8V | <7V | ||
Ordering Information
| Rof | AM | XX | XXG | XX | XX | XX |
| Hom: AM---Intensity Modulator | Lub wavelength: 07 - 780 nm 10---1060nm 13---1310 nm 15---1550nm | Bandwidth: 10 GHz 20 GHz 40 GHz 50 GHz
| Saib xyuas PD: PD --- Nrog PD | In-Out Fiber Hom: PP---PM / PIB
| Optical connector: FA --- FC / APC FP---FC/PC SP --- Customization |
R-AM-15-40G
Wavalength 1550nm 40GHz Intensity modulator
| Parameter | Cim | Min | Ntaus | Max | Chav tsev | ||||
| Optical tsis | |||||||||
| Ua haujlwm wavelength | l | 1530 | 1550 | 1565 ib | nm | ||||
| Insertion poob | IL | 4 | 5 | dB | |||||
| Optical rov poob | ORL | -45 | dB | ||||||
| Hloov pauv hloov pauv hloov pauv @DC | ER @ DC | 20 | 23 | 45 | dB | ||||
| Dynamic extinction ratio | DER | 13 | dB | ||||||
| Optical fiber ntau | Tswv yimchaw nres nkoj | Panda PM Fujikura SM | |||||||
| tso zis chaw nres nkoj | Panda PM Fujikura SM | ||||||||
| Optical fiber ntau interface | FC/PC, FC/APC Los yog cov neeg siv los qhia | ||||||||
| Kev ntsuas hluav taws xob | |||||||||
| Ua haujlwm bandwidth(-3dB) | S21 | 28 | 30 | GHz | |||||
| Ib nrab-yoj voltage Vpi | RF | @50KHz |
| 4.5 | 5 | V | |||
| Kev tsis ncaj ncees | @Bias |
| 6 | 7 | V | ||||
| Hluav taws xob rov poob | S11 | -12 | -10 | dB | |||||
| Input impedance | RF | ZRF | 50 | W | |||||
| Kev tsis ncaj ncees | ZBIAS | 1M | W | ||||||
| Hluav taws xob interface | V(f) | ||||||||
Txwv tej yam kev mob
| Parameter | Cim | Chav tsev | Min | Ntaus | Max |
| Input optical zog | Phauv, Max | dBm ib | 20 | ||
| Input RF zog | dBm ib | 28 | |||
| tsis zoo voltage | Vbias | V | -15 | 15 | |
| Ua haujlwm kub | Sab saum toj | ℃ | -10 | 60 | |
| Cia kub | Tst | ℃ | -40 | 85 | |
| Cov av noo | RH | % | 5 | 90 |

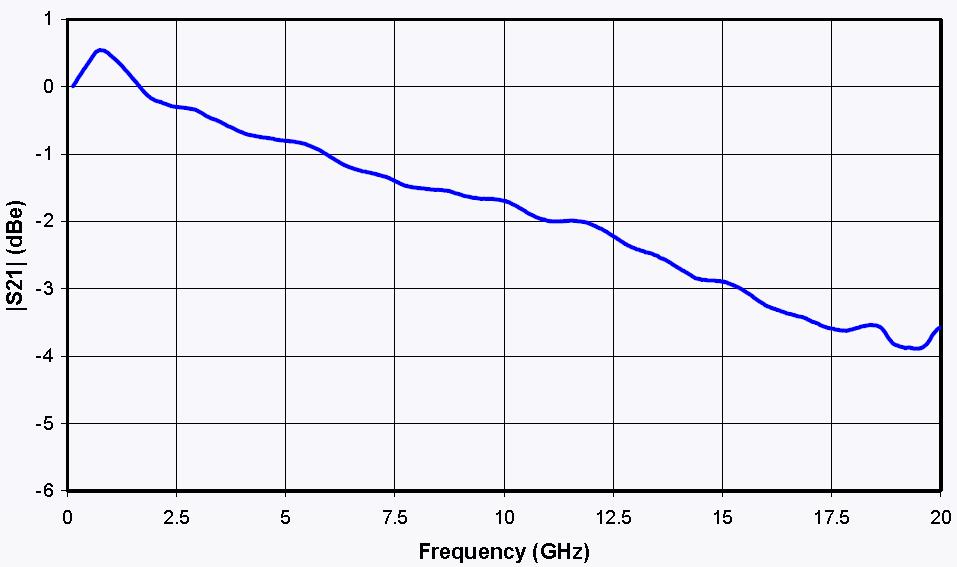

S21 Kev
&S11 Curve
S21 & S11 nkhaus
Mechanical Diagram
| PORT | Cim | Nco tseg |
| Hauv | Optical input chaw nres nkoj | PM Fiber (125μm / 250μm) |
| Tawm | Optical output chaw nres nkoj | PM thiab SMF xaiv |
| RF | RF input chaw nres nkoj | SMA(f) |
| Kev tsis ncaj ncees | Bias tswj chaw nres nkoj | 1,2 Bias, 34-N/C |
Rofea Optoelectronics muaj cov khoom lag luam ntawm Electro-optic modulators, Phase modulators, Siv modulator, Photodetectors, Laser light sources, DFB lasers, Optical amplifiers, EDFA, SLD laser, QPSK modulation, Pulse laser, Light detector, Balanced photodetector, Laser tsav tsheb , Fiber optic amplifier, Optical zog ntsuas, Broadband laser, Tunable laser, Optical detector, Laser diode tsav tsheb, Fiber amplifier. Peb kuj muab ntau yam modulators rau customization, xws li 1 * 4 array theem modulators, ultra-low Vpi, thiab ultra-high extinction ratio modulators, feem ntau yog siv nyob rau hauv cov tsev kawm ntawv thiab cov koom haum.
Vam tias peb cov khoom yuav pab tau rau koj thiab koj cov kev tshawb fawb.
