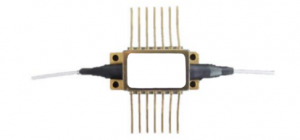

Rof Electro-Optic Amplifiers optical amplification npauj npaim semiconductor optical amplifier npauj npaim SOA
Feature
Kev nce siab
Kev siv hluav taws xob tsawg
Kev poob qis qis polarization
Qhov piv ntawm kev ploj tuag siab
Txhawb kev saib xyuas kub thiab TEC thermoelectric tswj
Daim Ntawv Thov
Kev tsim khoom thiab kev ua haujlwm ntawm cov khoom siv fiber ntau optical
Kev ua kom lub zog me me ntawm lub teeb liab loj dua
Kev tshawb fawb hauv chaw kuaj mob
Kev sib txuas lus fiber ntau ntawm optical
Cov Kev Cai
| Cov Qauv | Kev ua haujlwm mob | Chav tsev | Tsawg kawg | Hom | Qhov siab tshaj plaws |
| Kev ua haujlwm wavelength ntau yam |
| nm | 1490 xyoo |
| 1590 xyoo |
| bandwidth | @-3dB | nm | 55 |
| 60 |
| Lub zog kho qhov muag uas saturated | Yog tias = 250mA | dBm | 12 |
| 15 |
| Kev nce me me ntawm lub teeb liab | Yog tias = 250mA Pin = -25dBm | dB | 25 |
| 30 |
| Qhov nce ntawm cov zis saturation | Yog tias = 250mA | dB | 12 |
|
|
| Ua haujlwm tam sim no |
| mA |
| 250 | 400 |
| Voltage pem hauv ntej |
| V |
|
| 1.8 |
| Qhov piv ntawm kev ploj tuag | Yog tias = 250mA / Yog tias = -0.4mA Pin = 0dBm | dB |
| 50 |
|
| TEC tam sim no |
| A |
|
| 1.8 |
| TEC voltage |
| V |
|
| 3.4 |
| Kev nce qib nyob ntawm polarization |
| dB |
| 1.5 | 2 |
| Kev tsis kam ntawm thermistor | T = 25 ℃ | KΩ | 9.5 | 10 | 10.5 |
| Thermistor tam sim no |
| mA |
|
| 5 |
| Kub ua haujlwm |
| ℃ | -10 |
| 70 |
| Qhov kub cia khoom |
| ℃ |
|
| 85 |
Tus cwj pwm nkhaus
Qhov loj ntawm cov qauv
