Rof Bias Point Controller tsis siv neeg bias tswj module ntawm lithium niobate MZ modulator
Feature
Muaj ntau hom kev ua haujlwm bias (Quad+)↔Plaub-, Min↔Qhov siab tshaj plaws)
Kev sib txuas lus serial, programmed automatic fine tuning thiab xauv bias points
Cov khoom siv sab hauv txhawb nqa ntau yam wavelengths
Pob khoom module, lub hwj chim adapter
Daim Ntawv Thov
Kev sib txuas lus fiber ntau
Lub tshuab hluav taws xob microwave photon
Kev siv lub teeb pulsed
Kev ua tau zoo

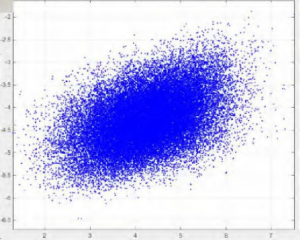

Daim Duab 1. Lub Hnub Qub (tsis muaj tus tswj)
Daim Duab 2. QPSK Constellation (nrog maub los)

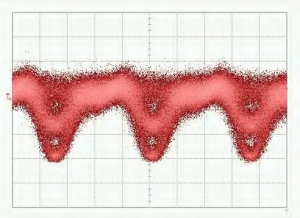

Daim Duab 3. QPSK-Tus qauv qhov muag
Daim Duab 5. 16-QAM Constellation qauv
Daim Duab 4. QPSK Spectrum
Daim Duab 6. 16-QAM Spectrum
Cov Lus Qhia Tshwj Xeeb
| Akev foob | Tsawg kawg | Ib txwm muaj | Qhov siab tshaj plaws | Chav tsev |
| Kev kho qhov muag tsis pom kev | ||||
| Lub zog fais fab tswv yim 1 * | 0 | 13 | dBm | |
| Kev ua haujlwm wavelength 2 * | 780 | 1650 xyoo | nm | |
| Kev sib txuas ntawm cov fiber ntau ntawm cov khoom siv kho qhov muag | FC/APC | |||
| Cov khoom siv hluav taws xob | ||||
| Qhov hluav taws xob tsis sib xws | -10 | 10 | V | |
| Hloov pauv qhov sib piv ntawm kev ploj mus 3 * | 20 | 25 | 50 | dB |
| Thaj chaw xauv hom | Zoo los yog tsis zoo | |||
| Hom xauv | Quad+ (Quad-) los yogTsawg kawg(Qhov siab tshaj plaws) | |||
| Qhov tob ntawm kev hloov pauv (QUAD) | 1 | 2 | % | |
| Qhov tob ntawm kev hloov pauv (Null) | 0.1 | % | ||
| Zaus tsav (QUAD) | 1K | Hz | ||
| Pilot zaus (NULL) | 2K | Hz | ||
| Cov qauv ib txwm muaj | ||||
| Qhov ntev (ntev× dav× tuab) | 120×70×34 hli | |||
| Kub ua haujlwm | 0 - 70℃ | |||
Lus Cim:
1 * yog hais txog qhov nkag ntawm lub zog rau lub module thaum lub modulator tso zis siab tshaj plaws. Rau qhov tswj qis ntawm lub modulator nrog qhov sib piv siab, lub zog nkag yuav tsum tau nce ntxiv kom tsim nyog; Nrog rau cov kev xav tau tshwj xeeb ntawm lub zog nkag, koj tuaj yeem kho qhov coupler sab hauv thiab lub tshuab ntes tau qhov ntsuas, thov sab laj nrog cov neeg muag khoom thaum tso cov xaj.
2 * Thaum tso ib qho kev txiav txim, thov qhia meej txog qhov ua haujlwm wavelength, uas yuav tsum tau ua kom zoo raws li qhov ua haujlwm wavelength.
3 * qhov hloov pauv qhov sib piv kuj nyob ntawm qib hloov pauv qhov sib piv ntawm lub modulator nws tus kheej.
Daim duab loj (hli)
Cov ntaub ntawv xaj khoom
* Yog tias koj muaj tej yam tshwj xeeb uas koj xav tau, thov hu rau peb cov neeg ua haujlwm muag khoom
| ROF | ABC | Hom modulator | XX | XX | XX |
| Tsis siv neeg bias point tswj module | MZ---M-Ztus neeg hloov kho | Ua haujlwm wavelength: 15---1550nm 13---1310nm 10---1064nm 08---850nm 07---780nm | Hom fiber: S-- Ib hom fiber ntau optical P - polarization-tswj fiber | Optical fiber interface: FA—FC/APC FP---FC/UPC |
Kev Sib Txuas Lus ntawm Tus Neeg Siv
| Pawg | Kev Ua Haujlwm | Kev piav qhia |
| Pib dua | Ntxig lub jumper thiab rub tawm tom qab 1 vib nas this | Pib dua qhov maub los |
| Lub zog | Lub zog fais fab rau kev tswj hwm kev tsis sib haum xeeb | V- txuas lub electrode tsis zoo ntawm lub hwj chim |
| V + txuas lub electrode zoo ntawm lub hwj chim | ||
| Qhov chaw nres nkoj nruab nrab txuas nrog lub electrode hauv av | ||
| Polar1 | PLRI: Ntxig los yog rub tawm lub jumper | tsis muaj jumper: hom tsis muaj; nrog jumper: hom siab tshaj plaws |
| PLRQ: Ntxig los yog rub tawm lub jumper | tsis muaj jumper: hom tsis muaj; nrog jumper: hom siab tshaj plaws | |
| PLRP: Ntxig los yog rub tawm lub jumper | tsis muaj jumper: Q + hom; nrog jumper: Q- hom | |
| LED | Txhua lub sijhawm | Ua haujlwm nyob rau hauv lub xeev ruaj khov |
| Qhib-tua lossis kaw-rau txhua 0.2 vib nas this | Ua cov ntaub ntawv thiab nrhiav qhov chaw tswj hwm | |
| Qhib-tua lossis kaw-rau txhua 1 vib nas this | Lub zog fais fab ntawm lub tswv yim tsis muaj zog heev | |
| Qhib-tua lossis kaw-rau txhua 3 vib nas this | Lub zog fais fab ntawm lub tswv yim muaj zog heev | |
| PD2 | Txuas nrog lub photodiode | Chaw nres nkoj PD txuas lub Cathode ntawm lub photodiode |
| Chaw nres nkoj GND txuas lub Anode ntawm lub photodiode | ||
| Cov Hluav Taws Xob Tsis Zoo | Hauv, Ip: Bias voltage rau kuv caj npab | Ip: Sab zoo; Hauv: Sab tsis zoo lossis hauv av |
| Qn, Qp: Bias voltage rau Q caj npab | Qp: Sab zoo; Qn: Sab tsis zoo los yog av | |
| Pn, Pp: Bias voltage rau P caj npab | Pp: Sab zoo; Pn: Sab tsis zoo los yog av | |
| UART | Ua haujlwm ntawm tus maub los ntawm UART | 3.3: 3.3V qhov hluav taws xob siv |
| GND: Hauv av | ||
| RX: Txais ntawm tus maub los | ||
| TX: Kev xa ntawm tus maub los |
1 Polar nyob ntawm lub system RF teeb liab. Thaum tsis muaj RF teeb liab hauv lub system, lub polar yuav tsum yog qhov zoo. Thaum RF teeb liab muaj qhov loj dua ib qib, lub polar yuav hloov ntawm qhov zoo mus rau qhov tsis zoo. Lub sijhawm no, Null point thiab Peak point yuav hloov nrog ib leeg. Q+ point thiab Q-point yuav hloov nrog ib leeg thiab. Polar switch ua rau tus neeg siv hloov lub polar
ncaj qha yam tsis hloov cov ntsiab lus ua haujlwm.
2Tsuas yog ib qho kev xaiv yuav tsum tau xaiv ntawm kev siv lub photodiode tswj lossis siv modulator photodiode. Nws raug pom zoo kom siv lub photodiode tswj rau kev sim hauv chav kuaj vim ob qho laj thawj. Ua ntej, lub photodiode tswj tau ua kom zoo. Qhov thib ob, nws yooj yim dua los kho qhov ci ntsa iab ntawm lub teeb nkag. Yog tias siv lub photodiode sab hauv ntawm modulator, thov xyuas kom meej tias qhov tam sim no ntawm photodiode yog sib npaug rau lub zog nkag.
